CONNECTORS & RECEPTACLES
SLIM-LINE CONNECTORS PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
SLIM-LINE CONNECTORS (continued)

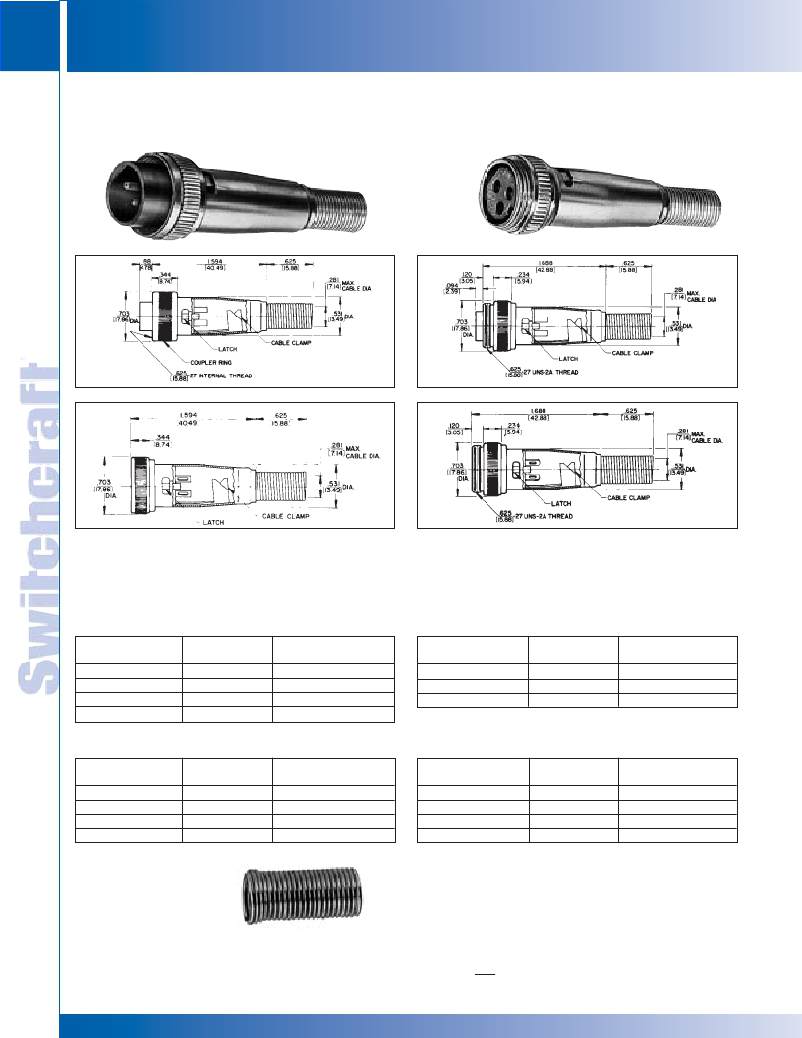

SL40 CORD PLUG with Coupler Ring
SL402M (typical)
Non-reflective metal shell; coupling ring; 2 through 5 pins
(male) or 2 through 5 contacts (female). Also 2-, 3- and
4-contact inserts with two shunted (N.C.) contacts. Efficient
cable clamp and strain relief.
SL MALE CORD PLUGS
Pin
SL41 CORD PLUG without Coupler Ring
SL413F (typical)
Non-reflective metal shell; 2 through 5 pins (male) or
2 through 5 contacts (female). Also 2-, 3- and 4-contact inserts with
two shunted (N.C.) contacts. Efficient cable clamp and strain relief.
SL MALE CORD PLUGS
Pin
Part Number
SL402M
SL403M
SL404M
Pins
2
3
4
Arrangements
1
2
3
Part Number
SL413M
SL414M
SL415M
Pins
3
4
5
Arrangements
2
3
4
SL405M
5
4
SL FEMALE CORD PLUGS
Contact
SL FEMALE CORD PLUGS
Contact
Part Number
SL402F
SL403F
SL404F
SL405F
Contact
2
3
4
5
Arrangements
A
B
C
D
Part Number
SL412F
SL413F
SL414F
SL415F
Contacts
2
3
4
5
Arrangements
A
B
C
D
STRAIN RELIEF SPRING
Strain Relief Spring
Part Number SL05
? Available on special order only; contact Switchcraft for price and delivery.
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
